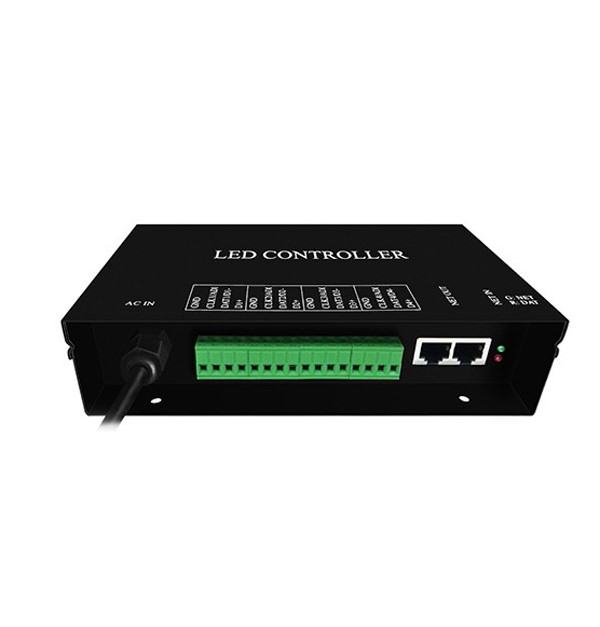

H802RA adopts standard Ethernet protocol and supports Art-Net protocol. Four output ports can control many kinds of LED driver chips and support auto address function. Input network port can be directly connected to the computer network card, can also be connected to offline and on-line master control, but also can be connected to switches and optical converters.
Supporting online software is as "LEDStudio" and offline software as "LedBuild" software.

Email: info@archled.net

Supported Chips

lpd6803, lpd8806, lpd6812, lpd6813, lpd1882, lpd1889, lpd1883, lpd1886, dmx512, hdmx, apa102, my9221, p9813, ld1510, ld1512, ld1530, ld1532, ucs6909, ucs6912, ucs1903, ucs1909, ucs1912, ws2801, ws2803, ws2811, ws2812, dz2809, sm16716, tls3001, tls3002, tm1812, tm1809, tm1804, tm1803, tm1914, tm1926, tm1829, tm1906, INK1003, bs0825, bs0815, bs0901, ly6620, dm412, dm413, dm114, dm115, dm13c, dm134, dm135, dm136, 74hc595, 6b595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV and so on.

Performance and Features

- Four output ports to control up to 4096 pixel points. The maximum number of control points per port is 1024 points.

- Support Art-Net protocol, can be used with MADRIX software.

- Can address DMX chips of Tianwei and Lianxinke.

- Can be set as repeater and amplifier by "LEDStudio" software.

- Can be connected or disconnected, can be directly connected to the computer network card, can also be connected to the offline and on-line master control.

- The use of flexible, sub-control can be arbitrarily interchanged, the adaptability of the lighting project.

- The transmission distance is far, the transmission signal using the standard Ethernet protocol, the nominal distance of 100 metres. Sub-control can be used as a relay, can be directly through the photoelectric conversion module, so that the transmission distance reaches more than 25 kilometres.

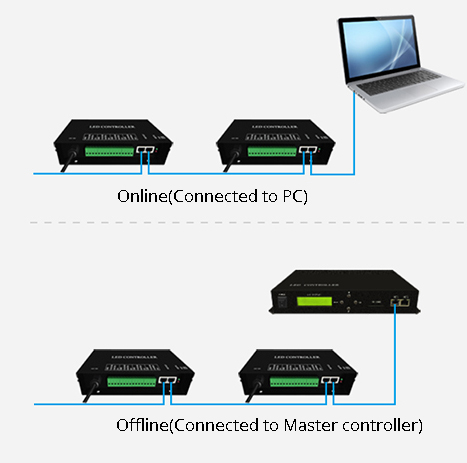

Connection Diagram

Connect to PC online, the supporting software is "LEDStudio" software or Madrix.

Offline to the Master controller, SD card control, supporting software is "LedBuild" software.


Note: The main control and sub-control, between the computer and sub-control, neighbouring sub-control with cross network cable connection.

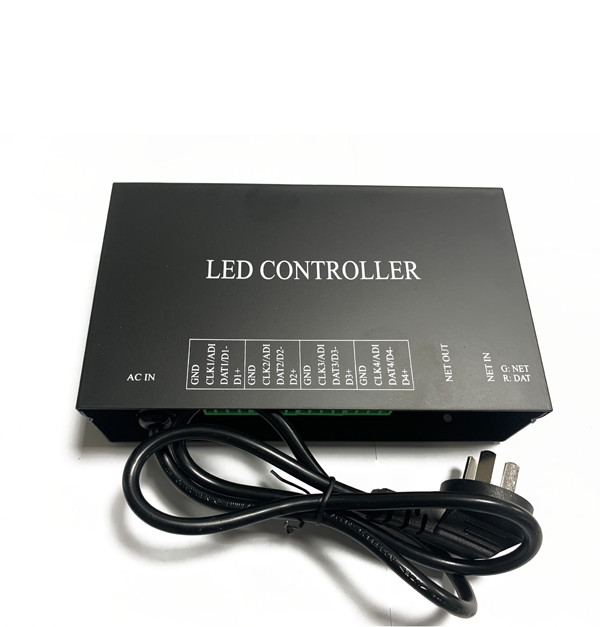

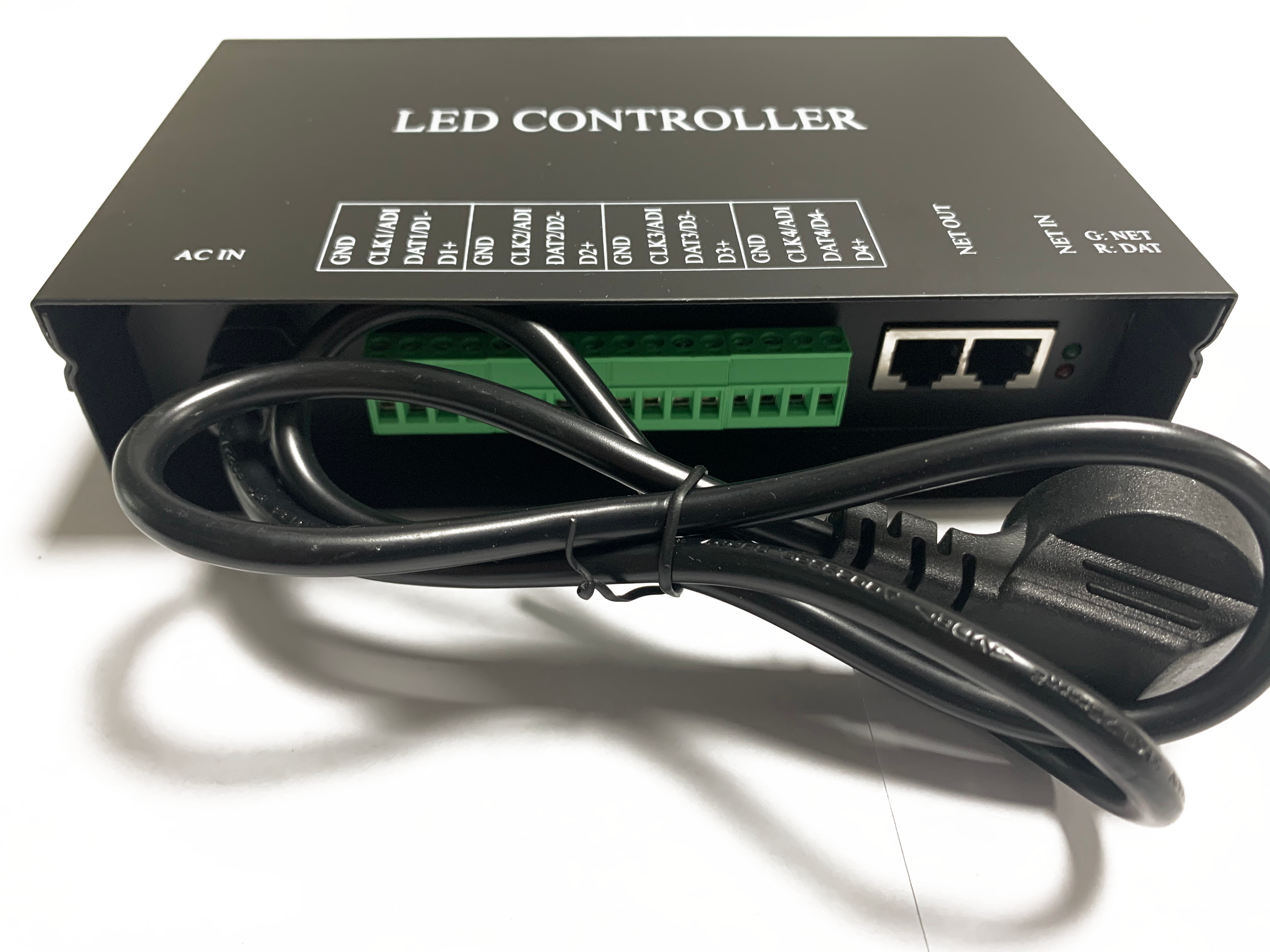

Ports Definition

Wiring definition for each port (from top to bottom): GND, CLK, DAT, D-, D+

Dual-wire driver chip connection: GND CLK DAT

DMX512 fixture connection: GND D- D+, if you want to single-wire address, the address line connects to CLK.

General single-wire driver chip connected to GND DAT

Special TM1926, TM1913, TM1914, TM1814: GND D+.
