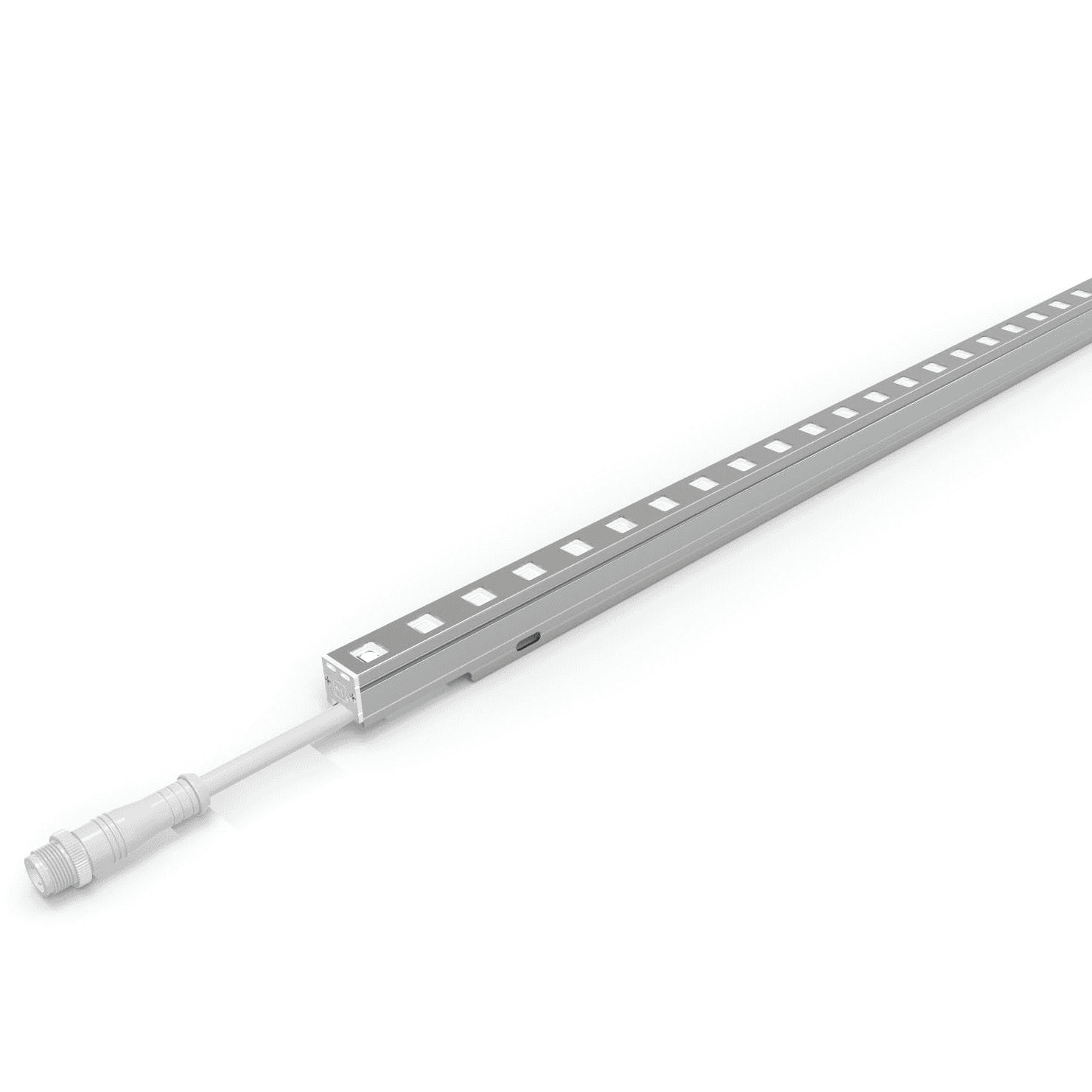

L3 LED Linear Light Bar for Facade Lighting RGB DMX512 Clear Diffuser W18MM

The L3 linear light is a low power LED strip product designed for outdoor landscape lighting. It adopts aviation grade 6063 extruded aluminum shell, flame-retardant plastic PC end cover, and is waterproof by high thermal conductivity and weather-resistant PU glue; the light bar is small in size and exquisite in appearance; the light strips are connected by national standard flexible cable; the product length and color can be customized, can adapt to the installation of large curves or curved surfaces; suitable for the contour of the building facade, the interior and exterior surfaces are brightened.

Email: info@archled.net

Product Features

- New generation dual channel real-time backup control protocol

- Industry-leading wireless button-type anti-smash connection design

- High thermal conductivity glue full potting waterproof design

- Outdoor lightning protection and Electrostatic (ESD) special protection design

- The top cover of the product is optional: support PC flat cover or aluminum punch flat cover

- The product uses the original hidden installation slider

- Support RGB/W current separately adjustable (low light and high gray)

Specifications

Parameter	Specification
Color/Grayscale	RGB/W each 4096 grayscale; RGB/W each 256 grayscale
Light Source Type	3535 / 5050 / 2835 / 3030
Number of Light Sources	48pcs/m
Lamp Body Material	Aviation grade 6063 extruded aluminum
Top Cover Material	Flame retardant PC / aluminum with punching
Lifespan	50,000h
Weight	400g/m
Working Voltage	DC24V
Maximum Power	12W/m
RGB Light Intensity	120cd/m
White Light Intensity	240cd/m
Light Beam Angle	30°/45°/60°/90°/120°
Electrical Safety Class	Class III
Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 70°C
Ingress Protection Rating	IP66
