Outdoor Linear Profiles Direct View RGB SMD5050 DMX512 PMMA Diffuser W23MM

Outdoor Linear Profiles Direct View RGB SMD5050 DMX512 PMMA Diffuser W23MM is made of aluminum housing, with anodized and hardened treatment, corrosion-resistant, high strength and no deformation. With high quality PMMA cover, it can deliver uniform soft lighting effect, resistant to ultraviolet rays, and it does not cause aging problems easily. 100% original Chinese production, all raw materials for core electronic components come from brand factories, combined with over ten years of production technology, the linear light has longer lifespan. With excellent waterproof and heat dissipation performance, it is easy to install and apply, fully suitable for rainy and sunny island buildings, outline of building and bridge,etc.

Email: info@archled.net

Product: Outdoor Linear Profiles Direct View RGB SMD5050 DMX512 PMMA Diffuser W23MM

Model: LA23

Dimension: L1000mm x W23mm x H43mm

Housing: Alumnium

Diffuser: PMMA Diffuser

Wattage: 12W

Voltage: DC24V

Color: Single Color/RGB/RGBW

Lighting Source: 48Leds SMD5050

Chip Brand: Epistar/Cree/Osram

LED Lifespan: > 30,000 Hours

Beam Angle: 120 Degree

Pixels Per Meter: 8/6/4 Pixels

Control Mode: DMX512

Address Setting: Manual

IP Rating: IP66

Warranty: Three Years

Working Temperature: -20~50℃

Remarks:Length/Power/Pixels/Led Qty can be customized


FEATURES & BENEFITS

- High-end design with Slim lamp body, suitable for multiple installation

- Aluminium alloy with compact size,anodized and hardened treatment, corrosion-resistant

- Inner organic epoxy resin glue sealed,Static-free and Lightning protection

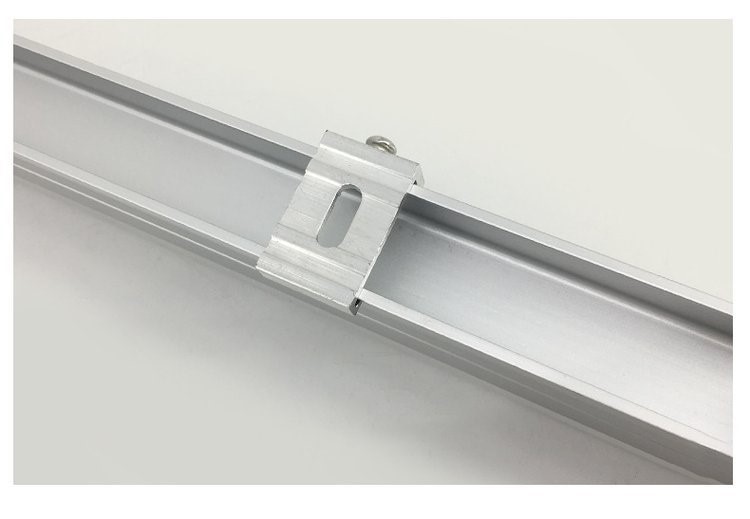

- Back fixing holder,convenient in installation and maintenance

- Seamless connection among lamps and no dark space at the joint

- More safety in installation and maintenance under DC 24V

- Length 0.5M,1M,1.5M,2M or customized

- Various type available, Single Color, DMX RGB, DMX RGBW

- Standard DMX512 signal

- Energy-saving ,Low-cost maintenance ,Long-life span
